FL 2200 DMX
The FL2200 white light LED-floodlight (comparable output to 2,200W tungsten or 250-400W HQI floodlights) is available with different colour temperatures and beam angles.
​For concert halls, theaters and multi-purpose halls, high-intensity floodlights are used as work and stage light as well as overhead lighting for orchestras. The floodlights can also be found in sport and exhibition halls.
The luminares are convection cooled, camera friendly and manufactured in Germany.
As energy saving is 90% compared to tungsten lights, the investment will be compensated after only one or two years, depending on the runtime.
2.700K, 3.000K, 3.500K, 4.000K, 5.000K, TW(2.700K-6.500K)
CCT
120°, 60°, 30°
Beam Angle
Highlights
-
For concert halls, theaters and multi-purpose halls
-
Can be used as work- and house-light as well as stage fill light
-
Dimmable via DMX-512 8bit/16bit, RDM
-
Fanless
-
Energy efficiency class C,D,or E
-
Camera friendly and flicker-free
-
Designed for continuous operation
-
Monochrome white light or tunable white
-
Beam angle 120°, 60° or 30°
-
Recessed Downlight Version available
LED Monochrome White Light
More monochrome LEDs on request.
LED Tunable White
Technical Specifications
-
Power consumption: 220W
-
Monochrome: 4 x Bridgelux Gen 7 Vero29
-
Tunable White: 4 x Bridgelux Gen 7 Vero29
-
Versions with 120°, 60° or 30° beam angle
-
LED lifespan: 50,000h
-
Camera friendly and flicker-free
-
Dimmable: via DMX-512, mode: 8bit (1 control channel) and 16bit (2 control channels) with RDM
-
Power supply: integrated, Meanwell type, fanless
-
Mains connection: Powercon True1 in/out, 90-300VAC, 50/60Hz
-
DMX in/out: Neutrik XLR 5-pin
-
Black body: die-cast aluminum and steel
-
Protection class: IP20
-
Dimensions: (WxHxD) 526x196x365mm (without bracket)
-
Weight: 12.9 kg

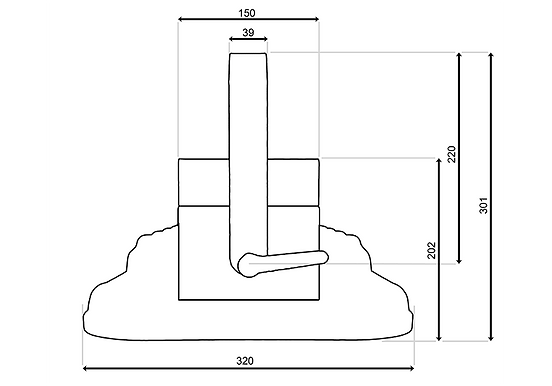

Dimensions [mm]
Accessories
Accessory holder
60° or 30° reflectors
Barndoor
Diffusionfilters
Recessed Downlight Version
